Need the datasheet for this product, please leave a message and we will send you by email. If you need good communication and fast shipping. Try us - TMDSDOCK28335 TMS320F28335 experiment board kit development board C2000 massage card



The C2000 MCU test suite provides aC2000 micro controllerReal time, closed loop control of the development of a powerful hardware prototype design platform. This platform as a very good tool, can be customized and verified many common power electronics applications, these applications includeMotor control,Digital power supply,Solar inverter,Digital LED lighting,High precision inductionandOther applications.



To view all the available C2000 MCU test suite, please visitMCU C2000 tools and software page.



Hardware characteristics



The C2000 test suite based onC2000 Delfino TMS320F28335 MCU, while the latter has support for floating point 150 MIPS processing core, 512 KB integrated flash memory, with a high resolution capability of 18 PWM channel, 12.5 bit 12 ADC MSPS, capture interface, QEP interface, serial connection, and so on.

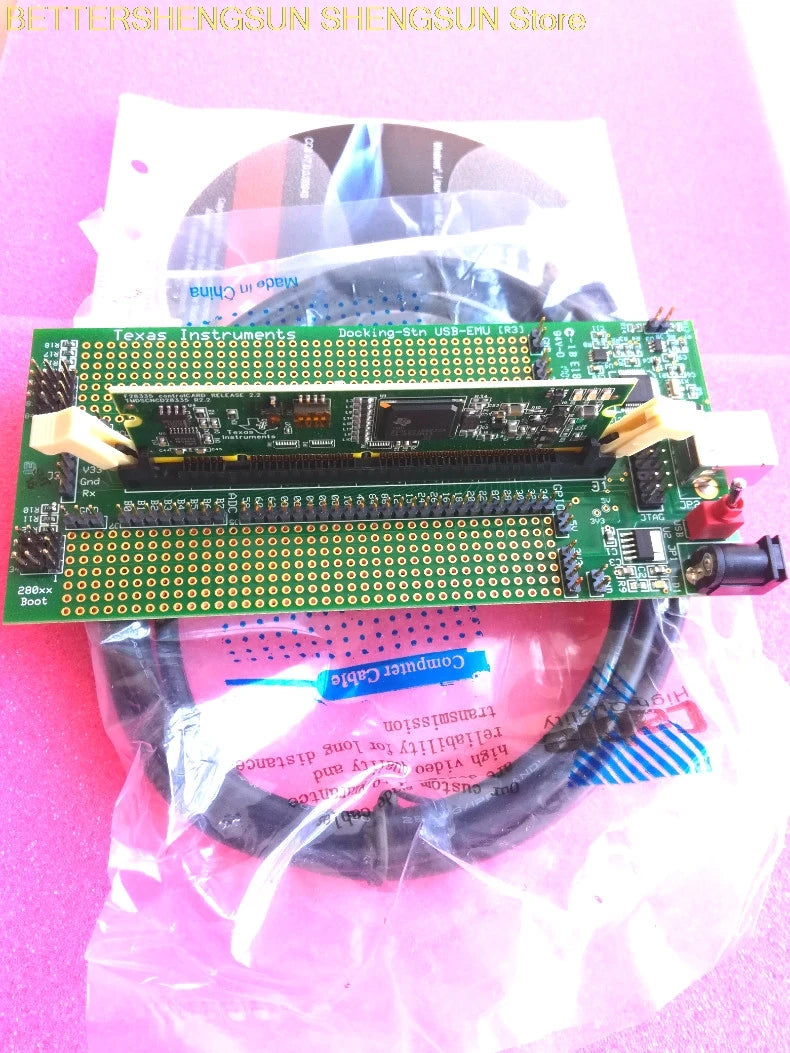

C2000 Experiment Kit board hardware contains a help to simplify programming and debugging of the isolated XDS100 JTAG emulator, for access to important micro controller signal connector pins for customization of wiring in a circuit board area, DIMM100 controlcard plug-in slot based onDelfino TMS320F28335 C2000 micro controllerWith controlCARD, etc..



In addition, the use of the controlCARD interface provided by the interface module features, designers can purchase the same test suite with the same hardware and other compatible MCU controlCARD C2000 and experiment.



To view all the available C2000 MCU controlCARD, please visitMCU C2000 tools and software page.



Software characteristics



In order to use the C2000 test suite, suite with free C2000 MCU seriesControlSUITE software suite, which provides the software sample code, library, driver, hardware design documents, documents, application manuals, etc.. Users can also access the unrestricted version ofComposer Studio Code integrated development environment (IDE)To facilitate the use of Delfino TMS320F28335 MCU C2000 software development.



Start using



To start using your C2000 test kit, download and installControlSUITE software. Start controlSUITE and navigate to Tools Development > Experimenter > s > Kits > > Documentation > Experimenter > s > Kit Quick Start Guide DIM100, and follow the instructions in this guide. In addition, s' Experimenter '' Kit 'Overview - Framework System and Template Projects Guide to learn how to use the provided template project.









characteristic

C2000 Delfino TMS320F28335 MCUComes with 150 MIPS floating point kernel, 512 KB flash memory, 18 high resolution PWM channel, 12 bit 12.5 ADC MSPS, and so on.

By using the built in isolated JTAG XDS100 simulator, the real-time system can be programmed and debugged by USB.

Access the important MCU signal through the connector pin

Through the circuit board area custom wiring method

With onboard USB JTAG simulation hub station

Modular controlCARD slot, easy to interact with MCU

Contains Delfino TMS320F28335 MCU controlCARD C2000

Select jumper guidance mode based on

Free Download for general purpose application developmentControlSUITE softwareExample, library, driver, etc..

Free unlimited versionComposer Studio Code integrated development environment (IDE)
