SPECIFICATIONS

Brand Name: NONE

Condition: New

High-concerned chemical: None

Origin: Mainland China

Type: Voltage Regulator

Product name: TDA2030A Mono Amplifier Circuit Board Kit

Product model: TJ-56-289

Working voltage: AC 12V/DC 12V, current above 1A.

Board size: 52*52mm

Output power: 10-15W(Max. 18W)

Frequency range: 20Hz-20KHz

●Degree of distortion: <0.1% at1W

●Signal-to-noise ratio: >70dB

●Isolation degree: >50dB

●Speaker recommended choice: 2.5-4 inch, 5-20W.

●Impedance 4-8 ohm full-range speaker.

Product Introduction:

TDA2030A amplifier circuit board, mono power amplifier, potentiometer control electronic production kit. Uses TDA2030A amplifier IC with volume control potentiometer and heat sink. Kit includes circuit board, complete set of components, circuit schematic, etc.. Requires soldering and installation for use.

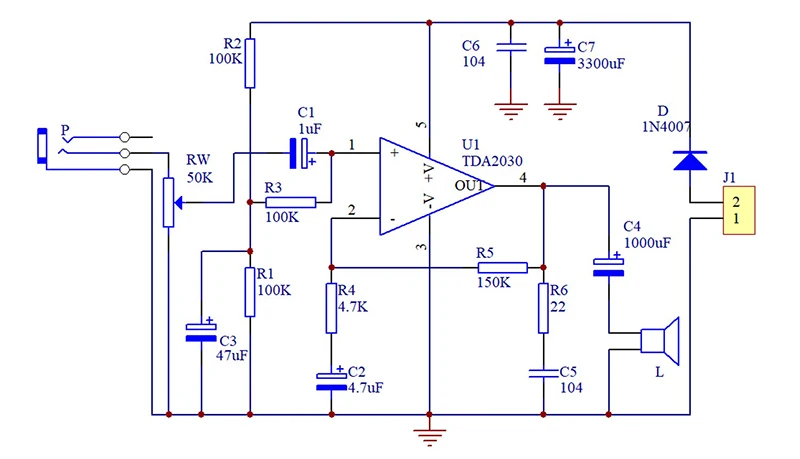

Circuit Diagram:

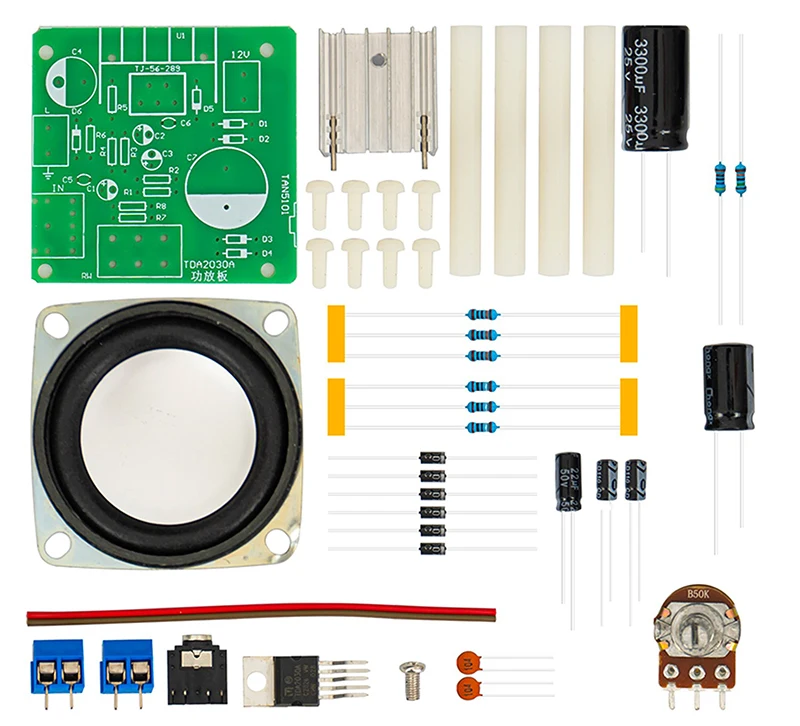

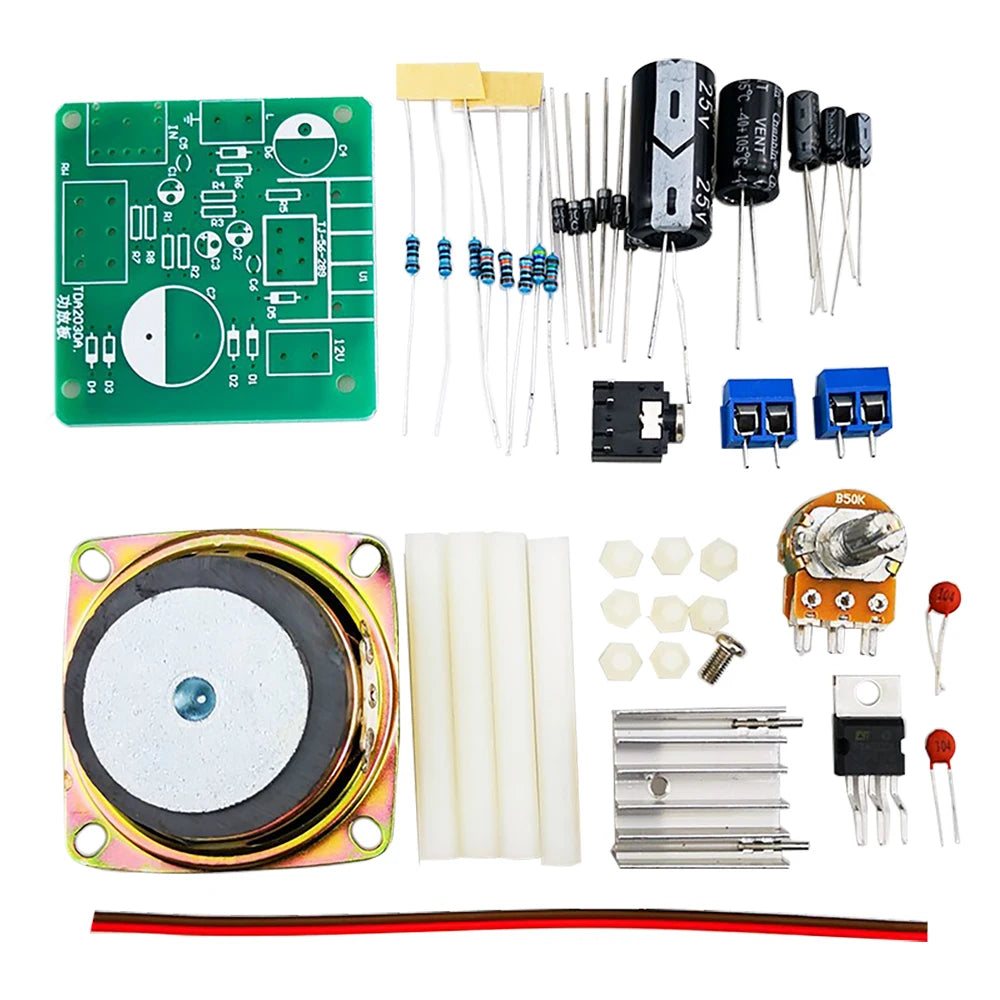

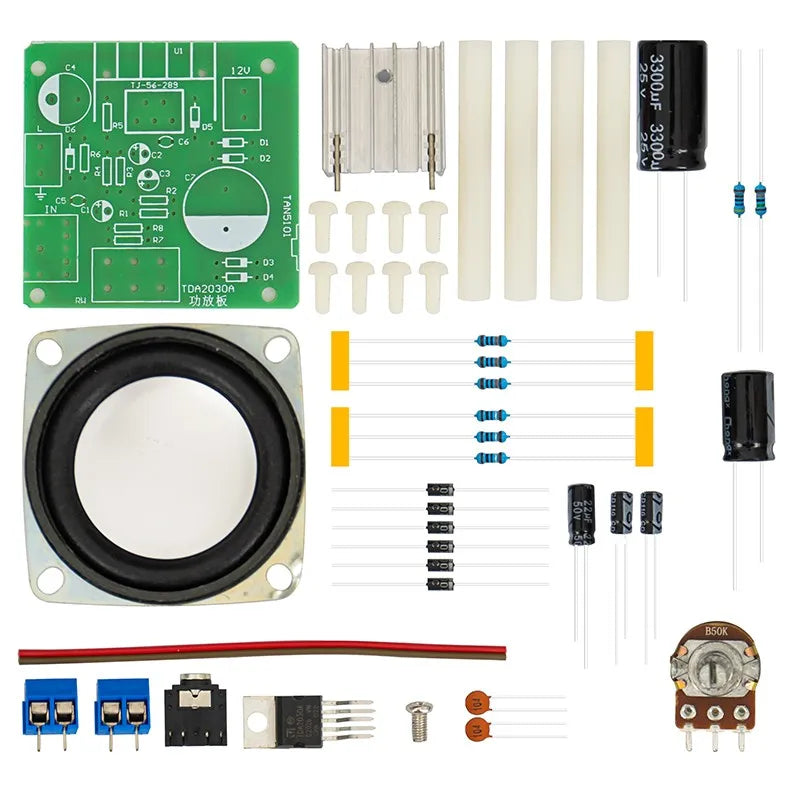

Package Includes:

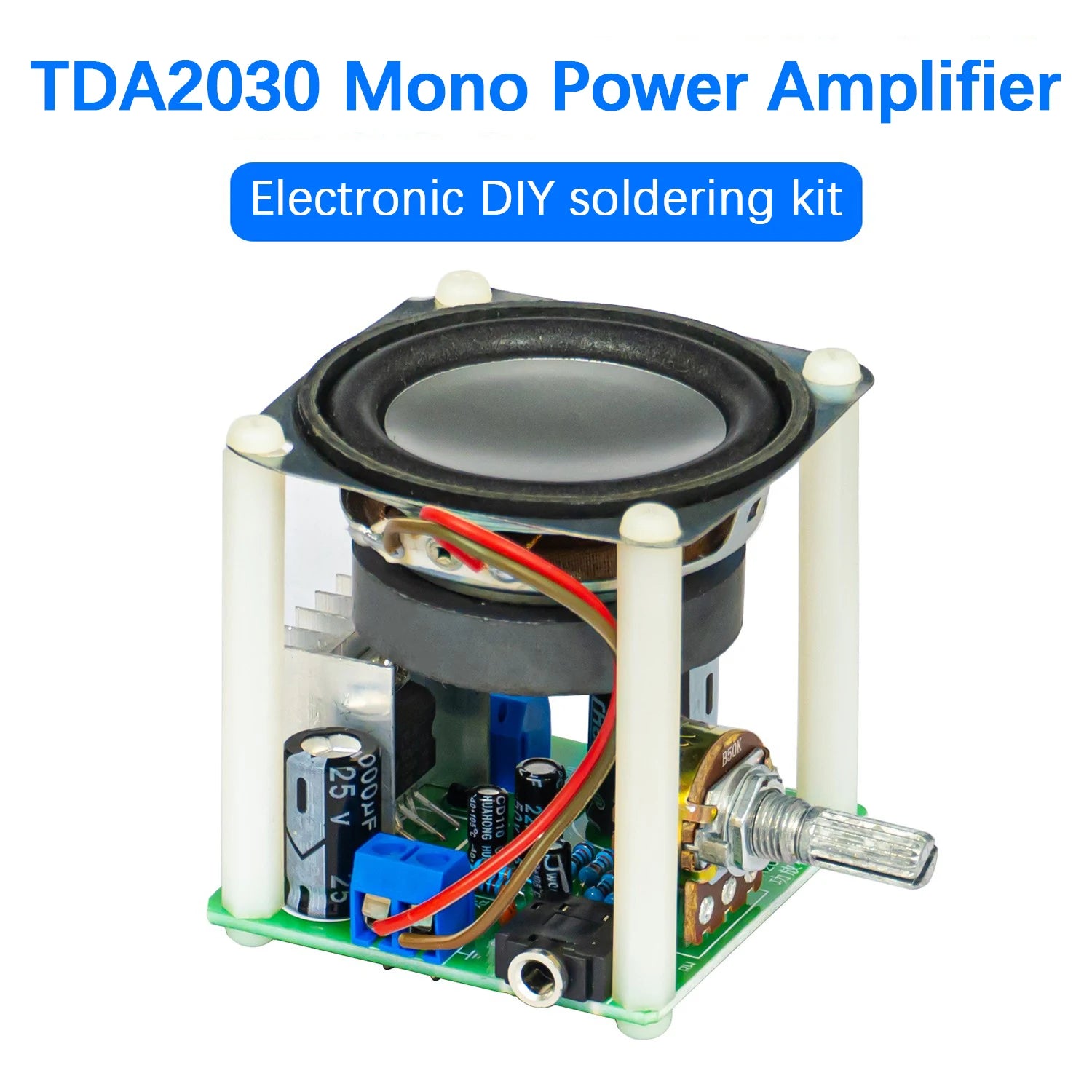

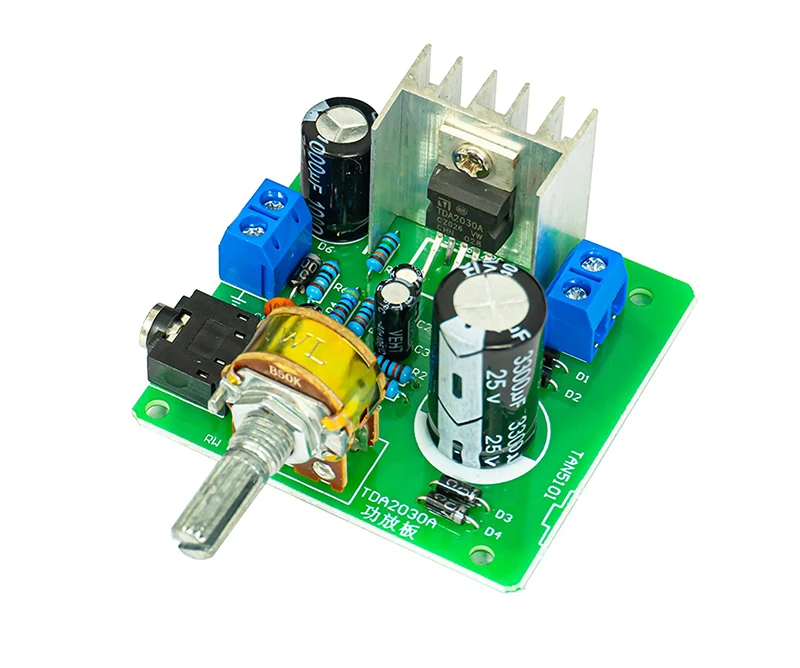

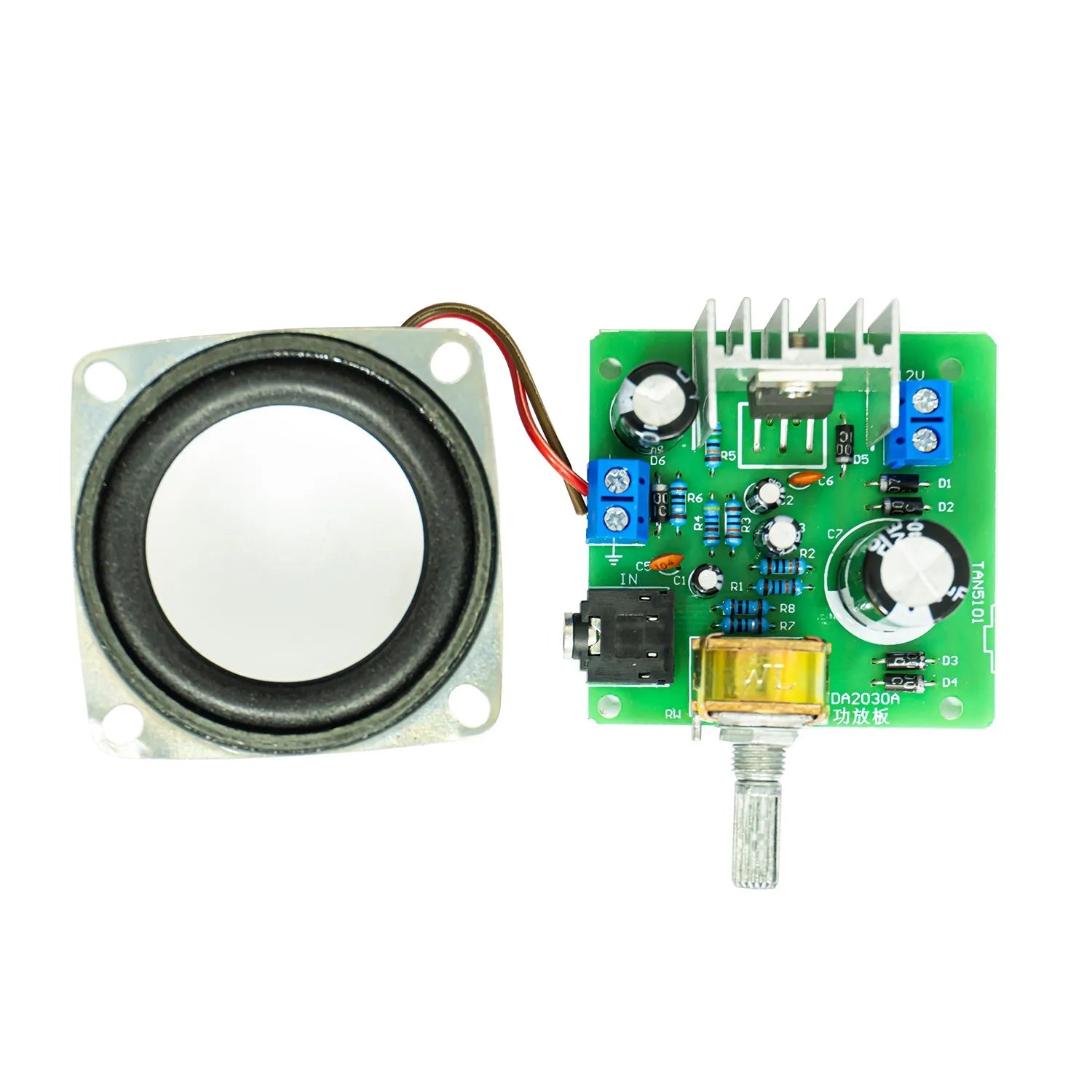

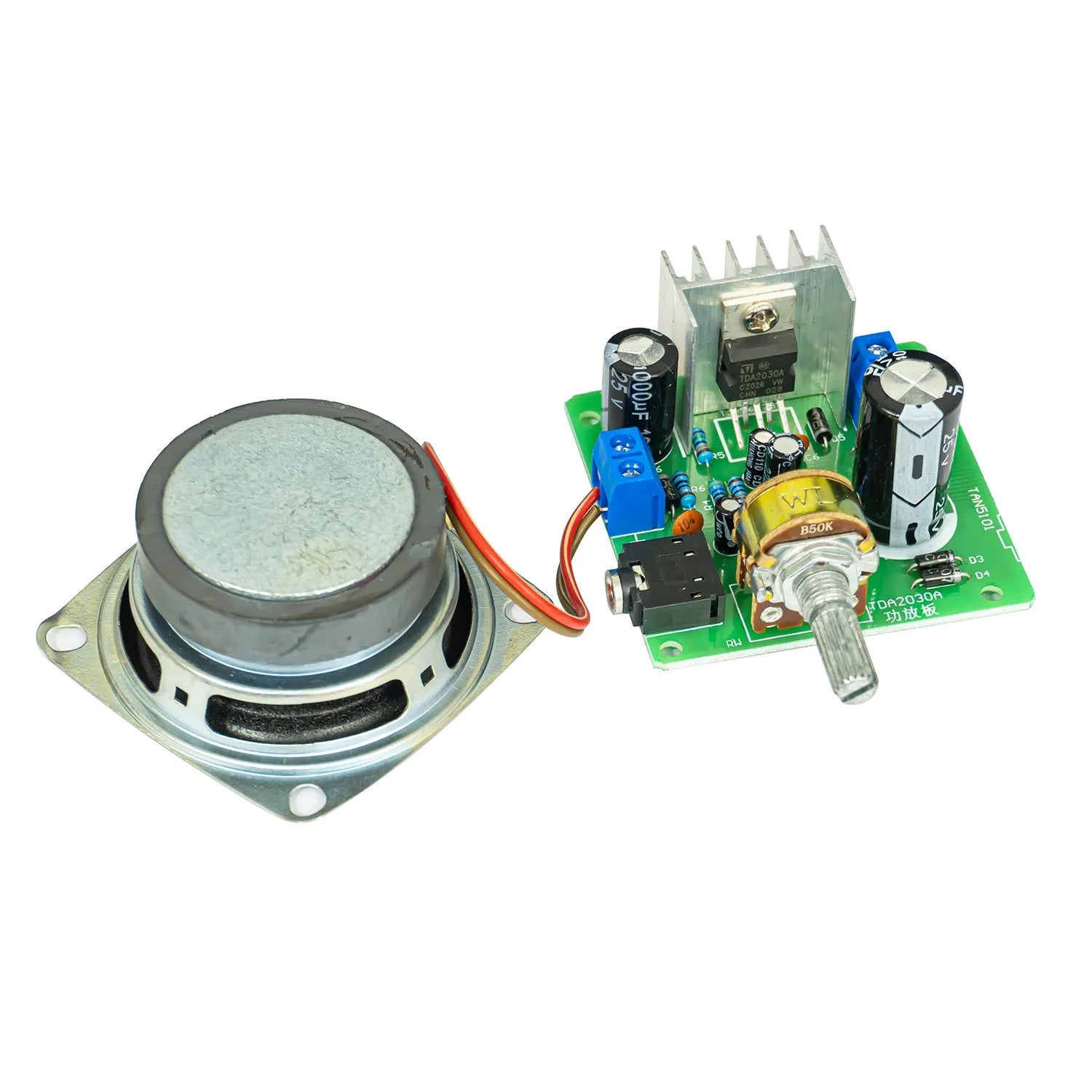

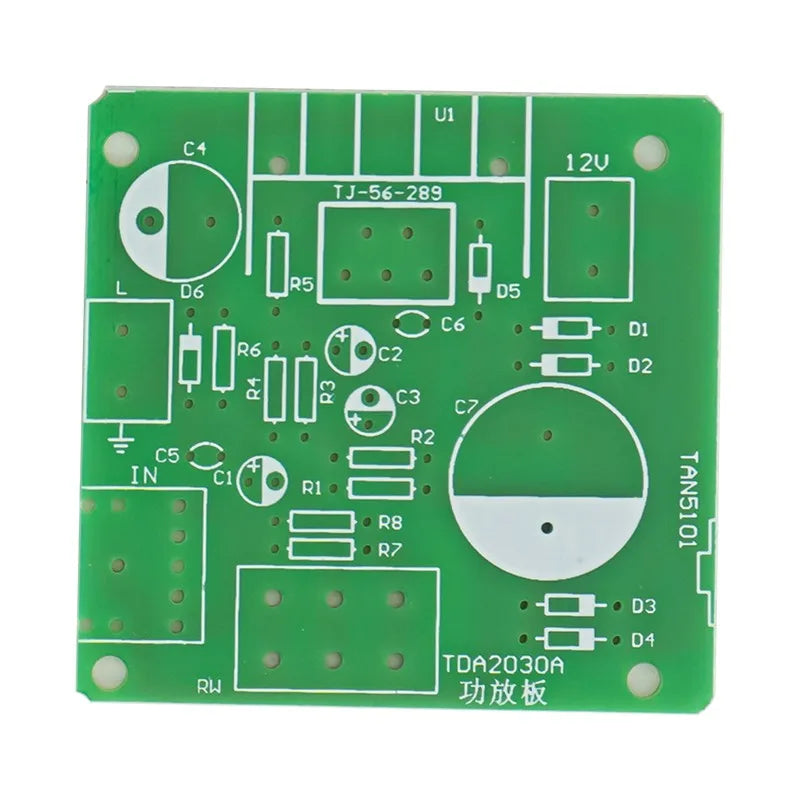

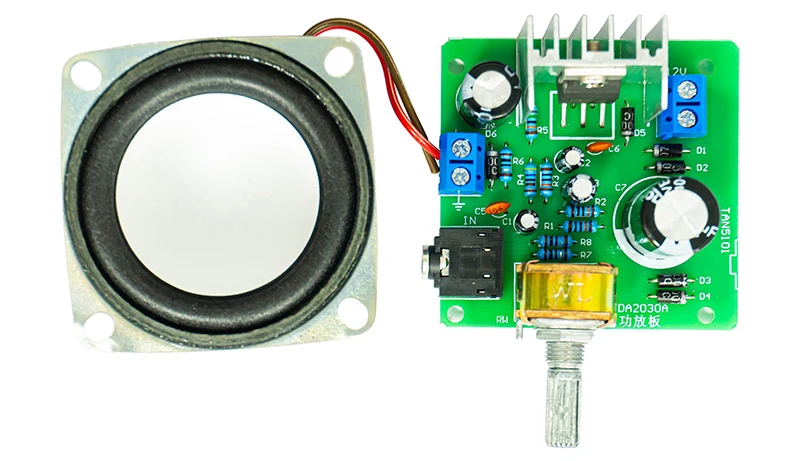

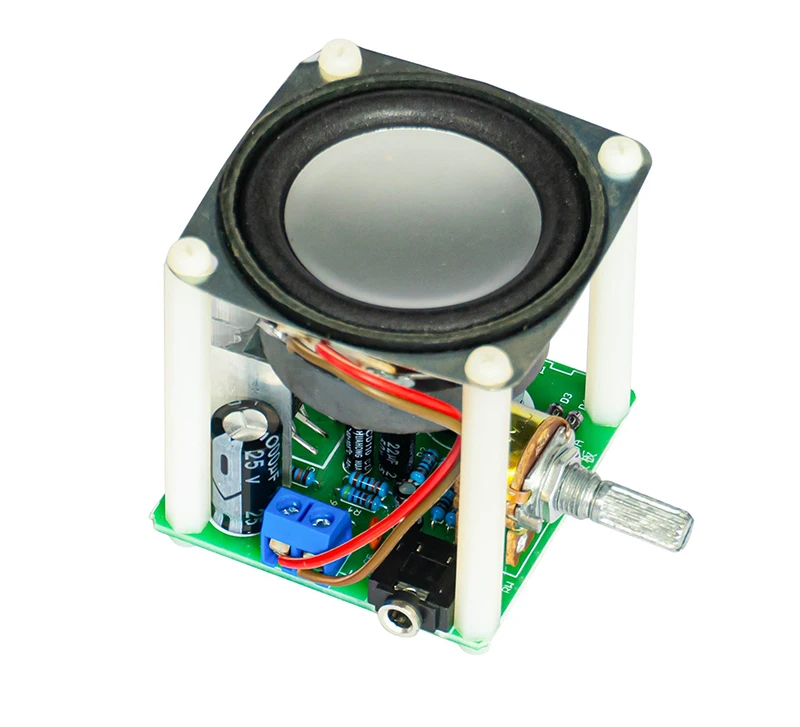

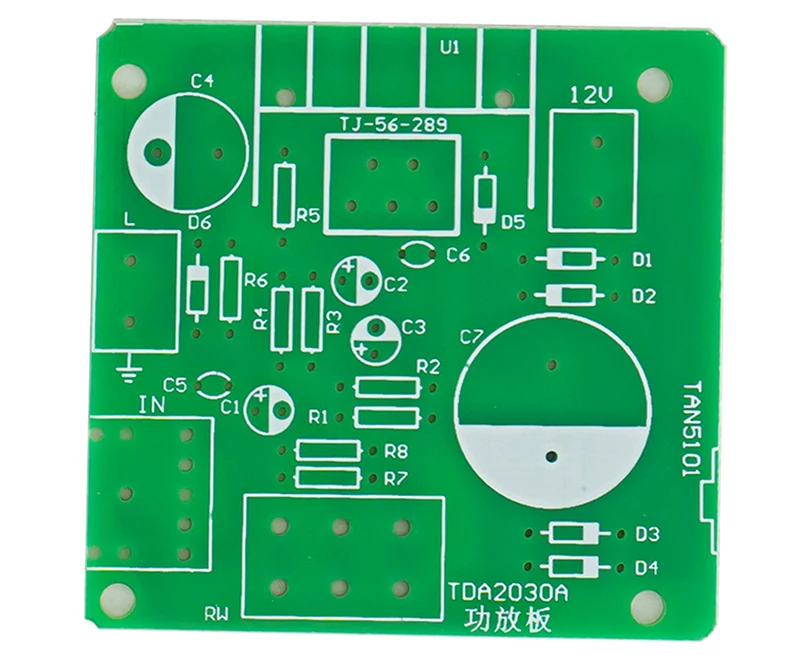

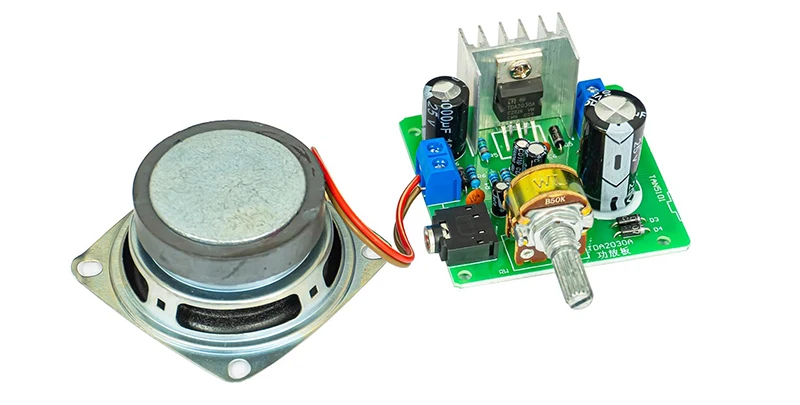

Finished Product Display:
